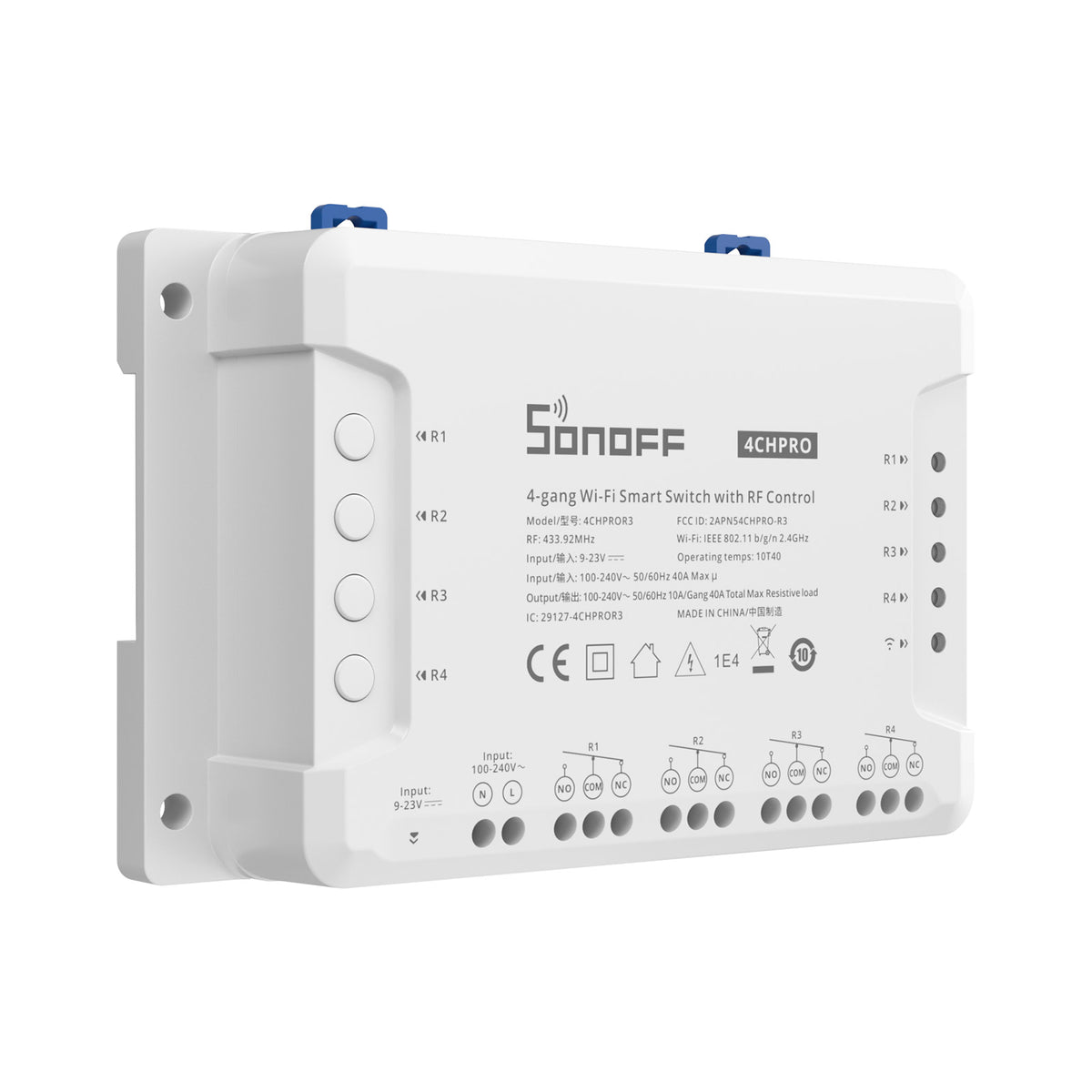

SONOFF 4ChR3 & 4ChProR3 are both 4-gang Wi-Fi Smart Switches designed to give you the ability to integrate smart control into your existing home to enable a smart home. Each smart switch has 4 gangs that can be used to control lights and other home appliances at the same time in four areas of your home. There is a major difference between 4CHR3 and 4CHPROR3, which is that 4CHPROR3 is designed with an additional function for RF control. The function is purposely adopted to make you turn on/off the device connected with 4CHPROR3 via the RM433 remote controller.
Actually, SONOFF has released two types of 4-gang smart switches (4CHR2 and 4CHPROR2) that come with almost the same functions as 4CHR3 and 4CHPROR3. But all the above units are still different in 3 working modes, including self-locking, interlock, and inching mode. The new improvement on 4CHR3 and 4CHPROR3 compared with 4CHPR2 and 4CHPROR2 is for users to set these 3 working modes on the eWeLink APP instead of the hardware itself, making it easier to operate. So you can enable self-locking mode to turn on/off 4 connected devices separately, interlock mode to turn on 1 connected device every time and turn off the rest of the devices simultaneously, and inching mode to turn on 1 connected device and then make it turn off automatically after a given time (0.5 – 3600s). For the device away from the switch, you can create a movable space using a DIN rail to connect them. Simply activate devices through your voice when the switch works with Alexa and Google Home smart assistants.
4Ch Pro R3 is available at a low price in Karachi, Lahore, Islamabad, Gujranwala, Multan, Sialkot, Rawalpindi, Faisalabad, Gujrat, Peshawar, and other cities of Pakistan.
Features of Sonoff 4ChProR3
- Remotely control connected lights or devices via the app
- 3 working modes with self-locking, interlock, and inching mode for even remote control of garage doors and roller blinds
- Support scheduling a timer to make devices automatically start and stop working
- Customize smart scenes to make the device connected to the switch trigger other devices
- Share the control permission of devices with other accounts to control together
- Check the real-time ON/OFF status of devices on your mobile phone
- Power on state allows users to set the On/Off/Keep status for the connected device before power failure and ensure it remains the arranged status after power restoration
Specification of 4ChProR3
- Voltage Range: 100-240V AC 50/60Hz (Pro DC: 9-23V)
- Max. Load: 10A/2200W/Gang 16A/3500W/Total (Pro 40A/8800W/Total)
- Wireless Frequency: WiFi 2.4GHz
- Wireless Standard: IEEE802.11 b/g/n 2.4GHz(2400M-2483.5M)
- Security Mechanism: WPA/WPA2
- Enclosure Material: PC V0
- Gang: 4
- Dimension: 145*90*34 (mm)
- Operating Temperature(recommended): -10ºC-40ºC(14°F-104°F)
- Operating Humidity: 5%-95%RH, Non-condensing
- Certification: CE, FCC
